$419.00
Thermal Master P3 – Phone Thermal Camera
Home & Building InspectionThermal Camera2025 Best Focusing Thermal Camera with 8mm manual focus macro lens, 256×192 IR resolution (512×384 with X³), detects PCB leakage down to 1mA, and ±2°C accuracy for professional diagnostics.
Description
Thermal Master P3 – PCB Thermal Camera (2025 Best Focusing Thermal Camera)
The Thermal Master P3 is the ultimate thermal camera for PCB diagnostics and professional electronic repair, featuring an innovative 8mm manual focus macro lens for unprecedented close-up thermal imaging.
Key Specifications

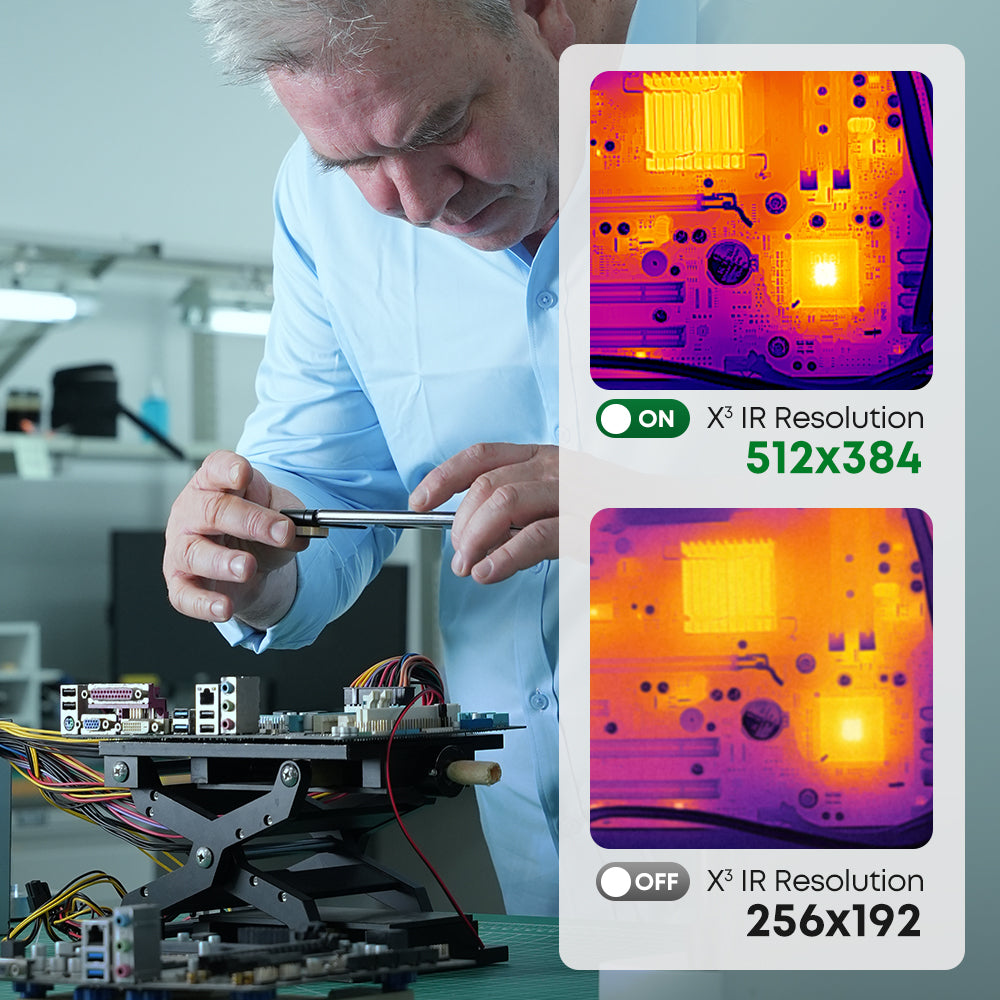

- IR Resolution: VOx 256×192 @12μm (512×384 with X³ Super Resolution)
- Temperature Range: -20°C to 600°C (-4°F to 1112°F)
- Temperature Accuracy: ±2°C or ±2%
- Thermal Sensitivity (NETD): <35mK
- Focal Length: 4.3mm with 8mm macro manual focus lens
- Focus Range: 8mm to 80m
- Frame Rate: 25Hz
Professional PCB Features
- 8mm macro manual focus ring for precision diagnostics
- Detects PCB leakage as small as 1mA
- 15x digital zoom capability
- 12 professional color palettes
- Razor X thermal imaging algorithm
- IQ+ precision temperature measurement
Applications
Professional PCB inspection, electronic component diagnostics, electrical panel inspection, HVAC troubleshooting, industrial maintenance, home inspections, automotive diagnostics, and solar panel inspection.
Media Recognition
Featured as “PCB Master” by ZDNET, Tom’s Guide, TechRadar, and The Gadgeteer.
Warranty & Support
- 2-year replacement warranty
- 30-day money back guarantee
- Lifetime technical support
- Free global shipping
Additional information
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
