Description

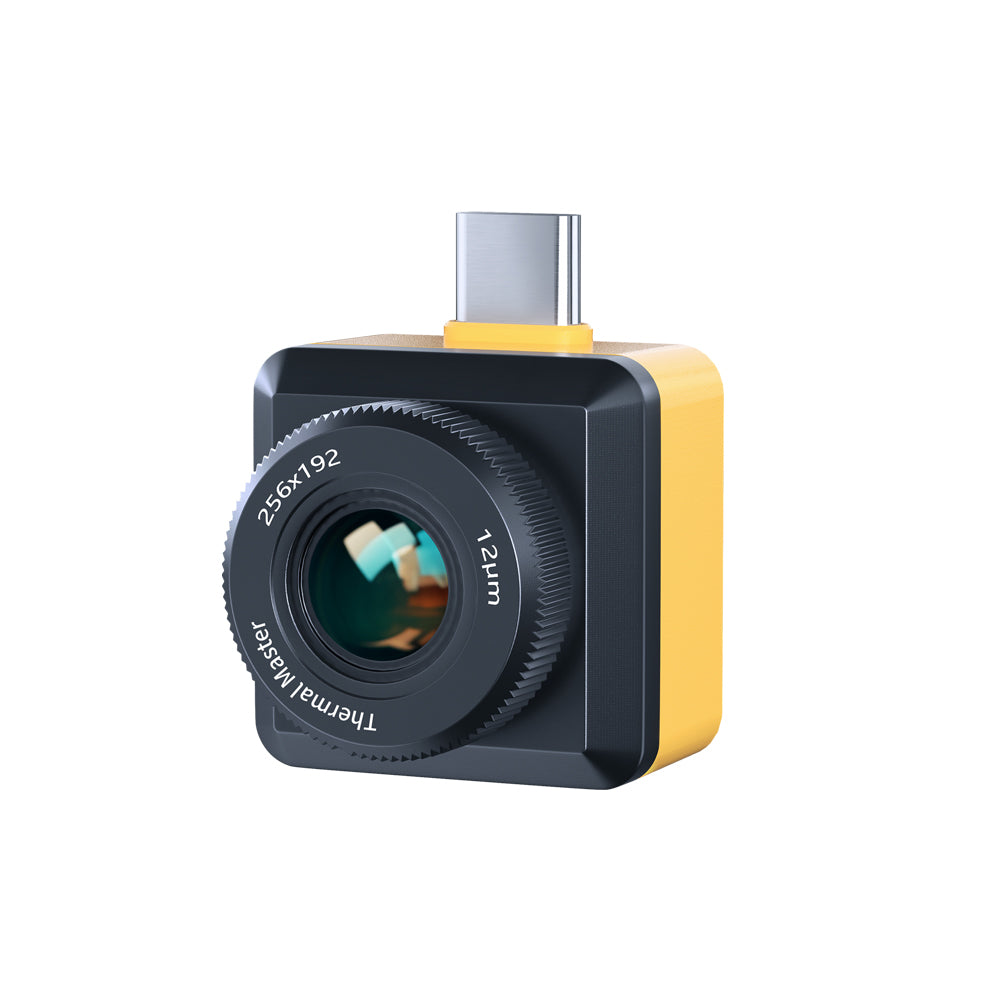

Thermal Master T2S Pro – 8mm Macro Temperature Measurement Master

The Thermal Master T2S Pro is the only phone thermal camera with HD mode, offering exceptional clarity for professional temperature measurement applications from micro-circuit inspection to long-range diagnostics.

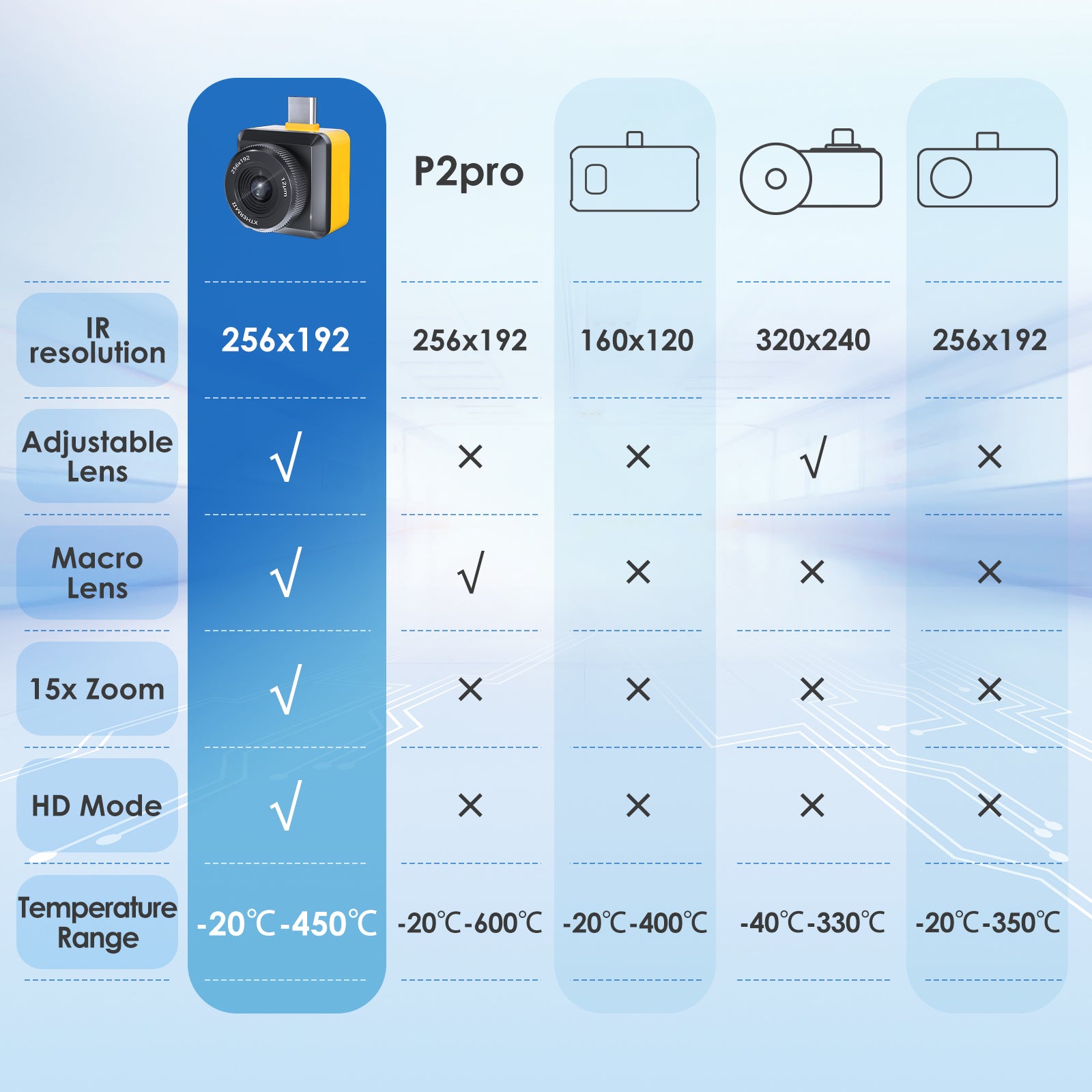

Key Specifications

• IR Resolution: 256×192 @12μm
• Temperature Range: -4°F to 842°F (-20°C to 450°C)
• PCB Accuracy: ±2°C
• Thermal Sensitivity (NETD): ≤40mK
• Frame Rate: 25Hz
• Weight: 19.5g
• Power Consumption: 0.35W

Unique HD Mode Features

• HD Ultra-Clear Mode: Only phone thermal camera with this feature
• Clearer images than competitors even with HD mode off
• 8mm manual close-up focus (minimum 8mm object distance)

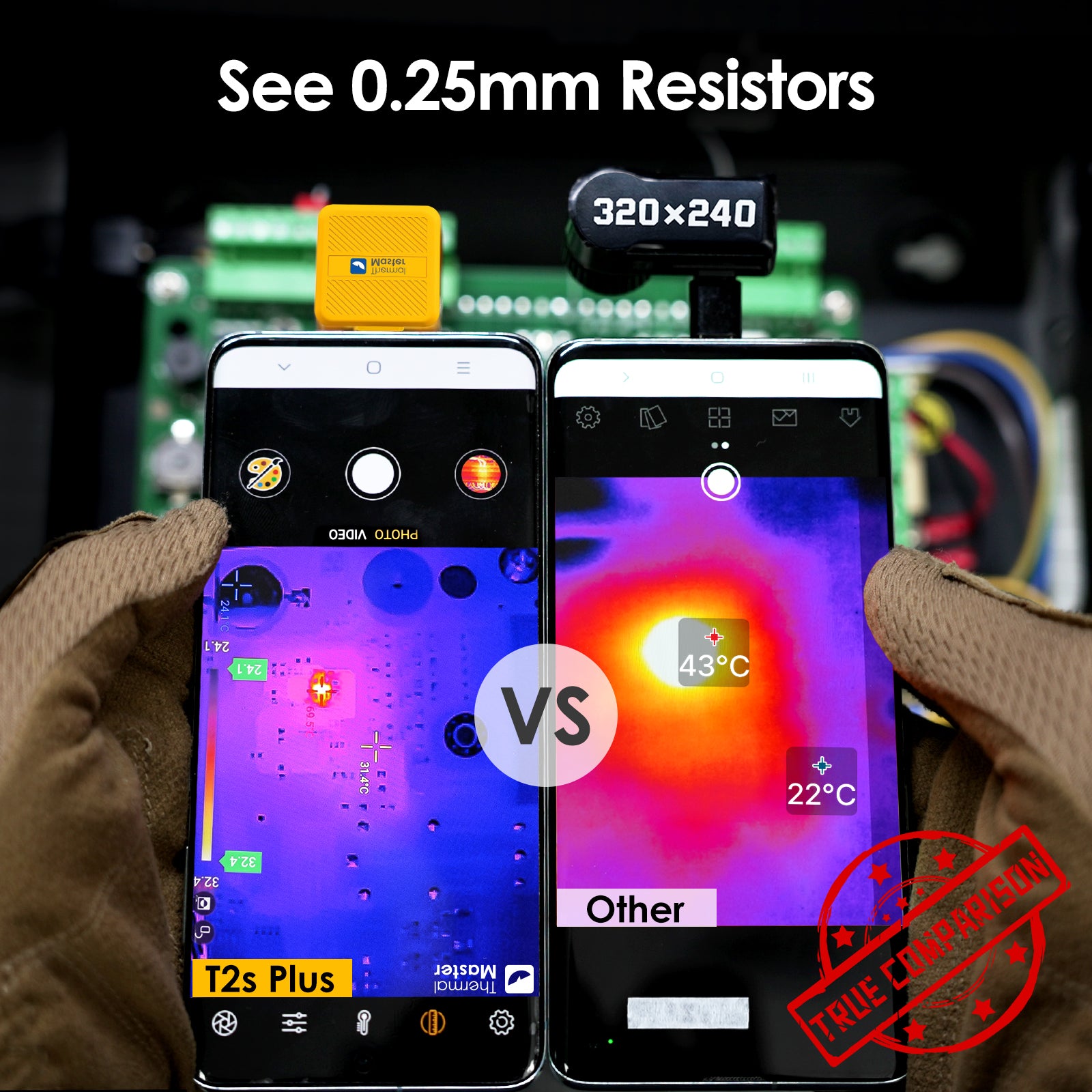

• Detects components as small as 0.25mm resistors

Three-in-One Capability

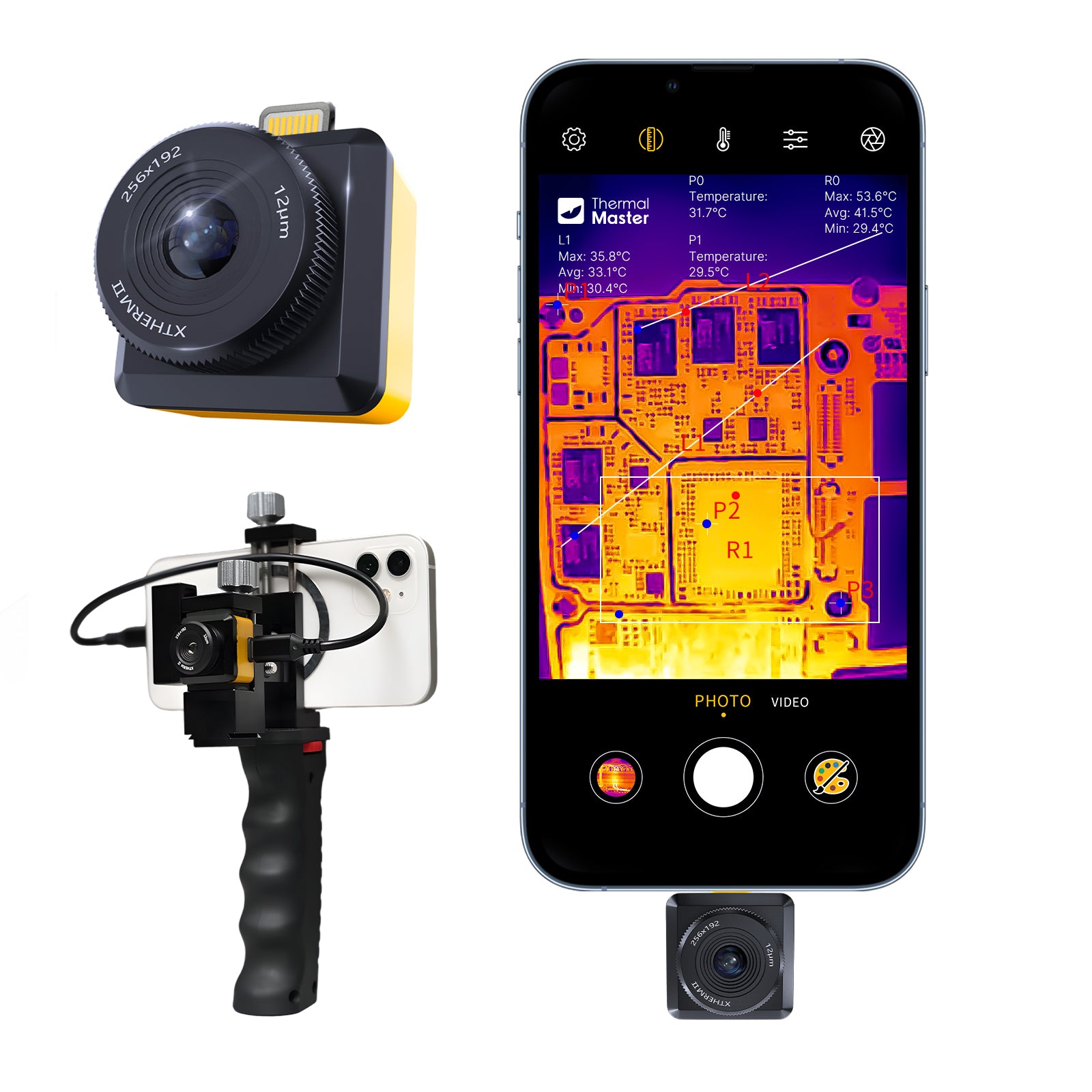

• Near (8mm): Micro-circuit and PCB inspection
• Medium (5m): Electrical cabinet diagnostics
• Far (10m): Power line and equipment inspection

Additional Features

• 15x digital zoom
• DIY color bar customization
• Temperature alarm function
• Razor X imaging algorithm
• IQ+ precision measurement

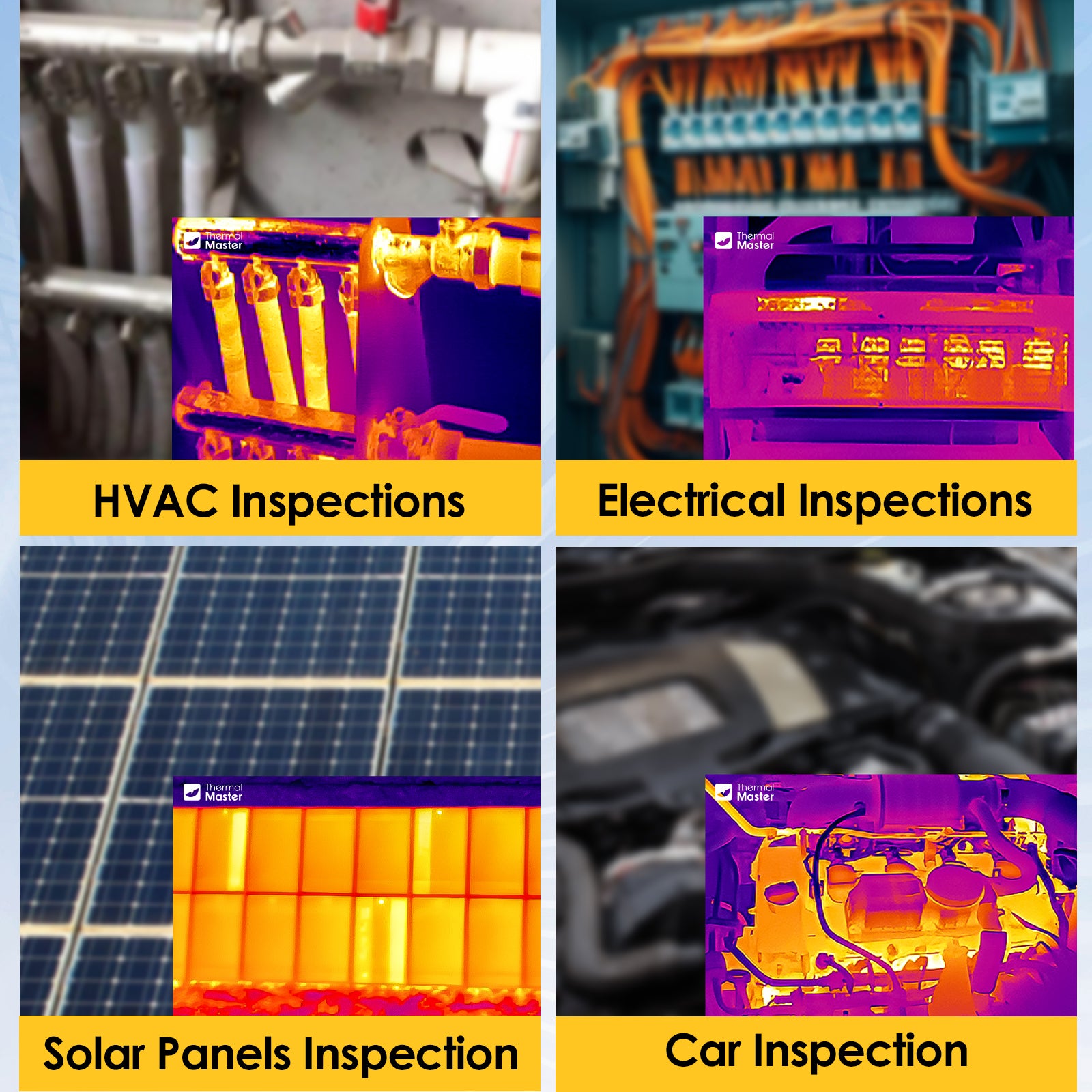

Applications

PCB inspection, electronics repair, electrical diagnostics, HVAC troubleshooting, solar panel inspection, automotive maintenance, and drone thermal imaging.

Warranty & Support

• 2-year replacement warranty
• 30-day money back guarantee
• Lifetime technical support
• Free global shipping
