Description

Thermal Master NV500 – Detect Life, 546 Yards Anti-Collision System

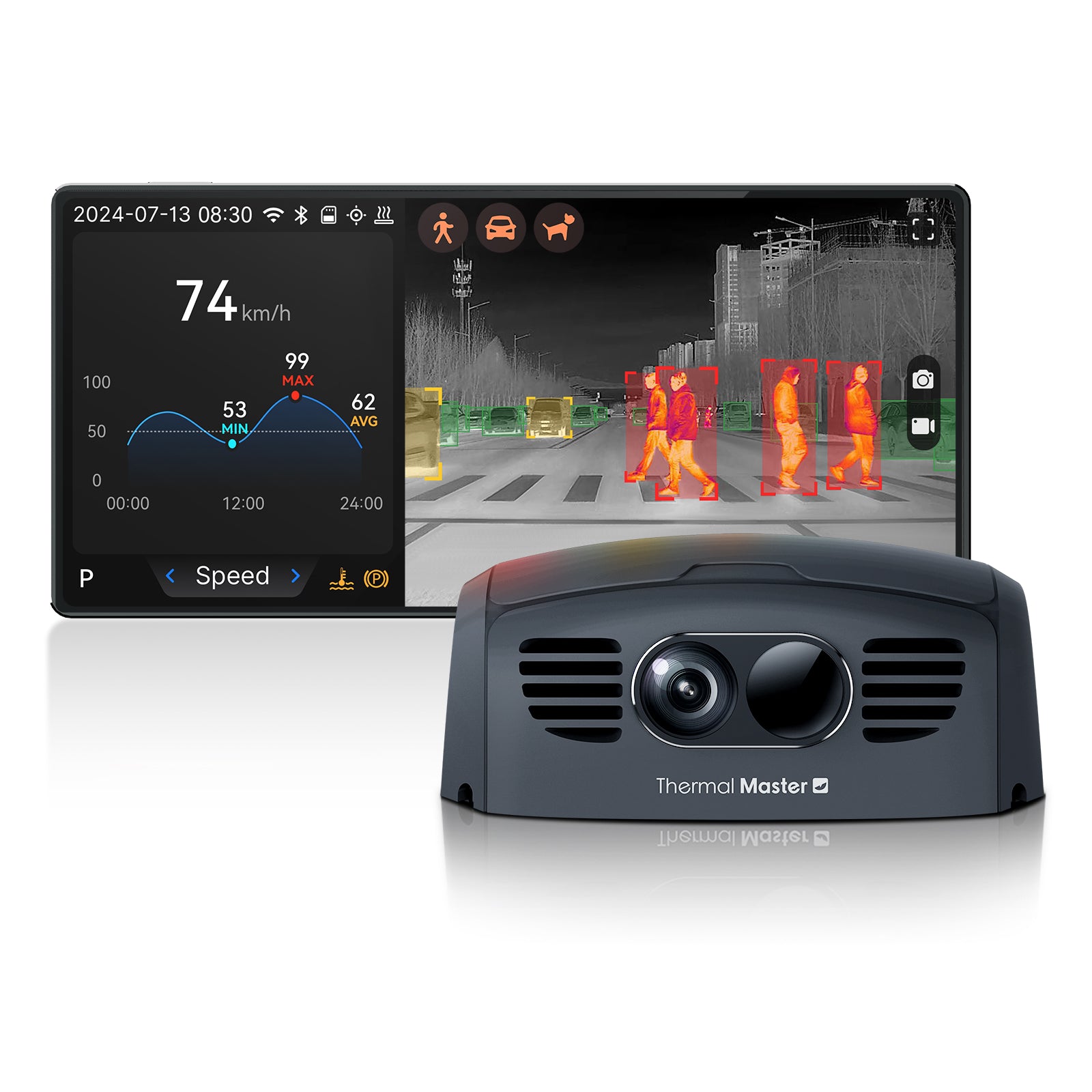

The Thermal Master NV500 is the ultimate automotive night vision system, featuring industry-leading 546-yard detection range, 3-in-1 functionality, and a stunning 6.4″ OLED magnetic levitation display designed for Tesla and premium vehicles.

Key Specifications

• Night Vision Distance: 500m (546 yards)
• Display: 6.4″ OLED (2340×1080 Super HD) magnetic levitation
• Dual Spectrum: 1280×720 + 768×576 Super Resolution
• Thermal Sensor: 384×288 @12μm Thermal Master high-performance sensor
• AI Computing: 4 TOPS processing power
• Response Time: 0.1 seconds
• Waterproof Rating: IP69K (resistant to 80°C high pressure spray)
• Operating Temperature: -4°F to 176°F (-20°C to 80°C)

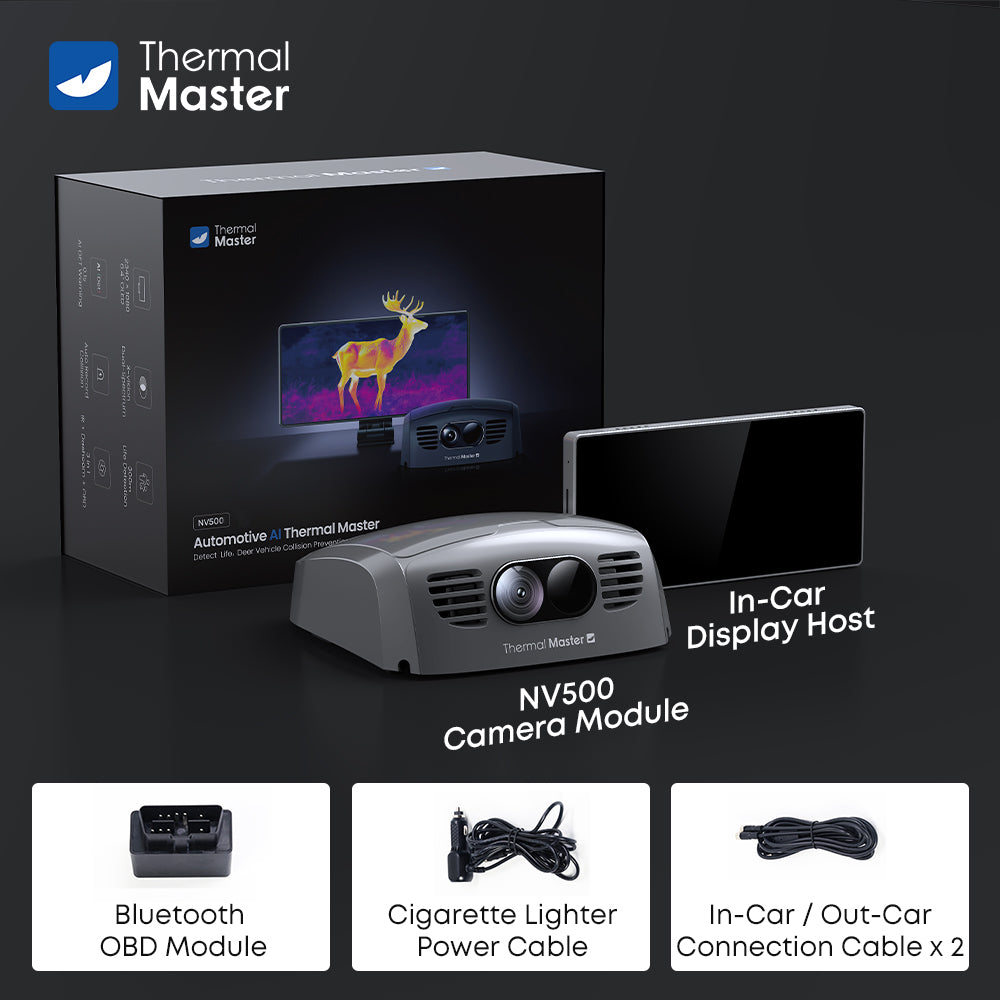

3-in-1 Functionality

• Thermal Imager: 546-yard all-weather detection
• Smart Dashcam: Automatic dual-light recording
• OBD Integration: Vehicle diagnostic connectivity

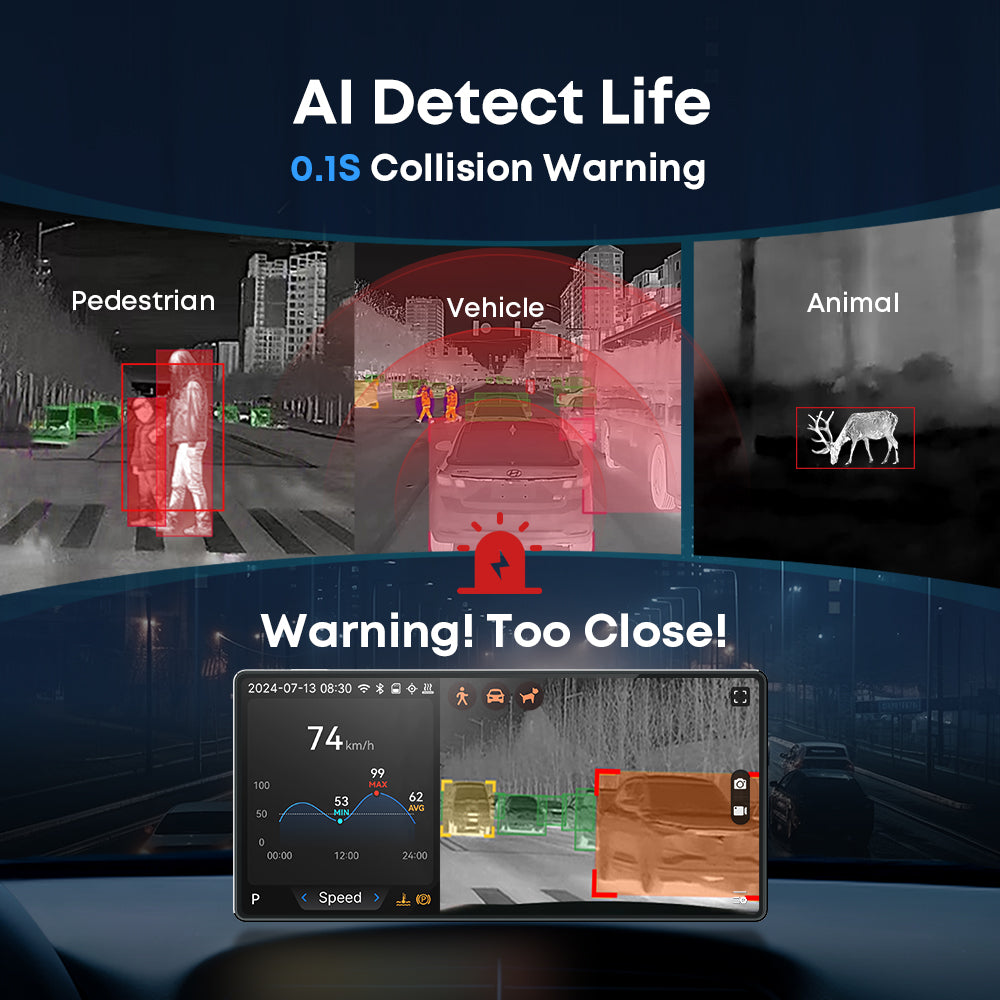

AI{Det} Collision Warning

• Detects pedestrians, motorcycles, cars, animals in 546 yards
• 0.1 second auditory and visual alerts
• Neural network deep learning algorithms
• Three sensitivity options: High, Middle, Low

3-Vision Display Modes

• Visible Light Mode: Standard HD camera
• Infrared Mode: Pure thermal imaging
• Fusion Mode: Combined thermal and visible overlay

Premium Features

• 6.4″ Magnetic Levitation Screen: 3D adjustment, seamless Tesla integration
• Shutterless Algorithm: Zero lag, uninterrupted real-time imaging
• Smart Voice Control: Hands-free operation for display modes, volume, brightness
• Corning Gorilla Glass: Double-sided protection
• 18 Color Palettes: Visual + Dual Spectrum combinations
• Razor X Algorithm: Enhanced thermal clarity

All-Weather Performance

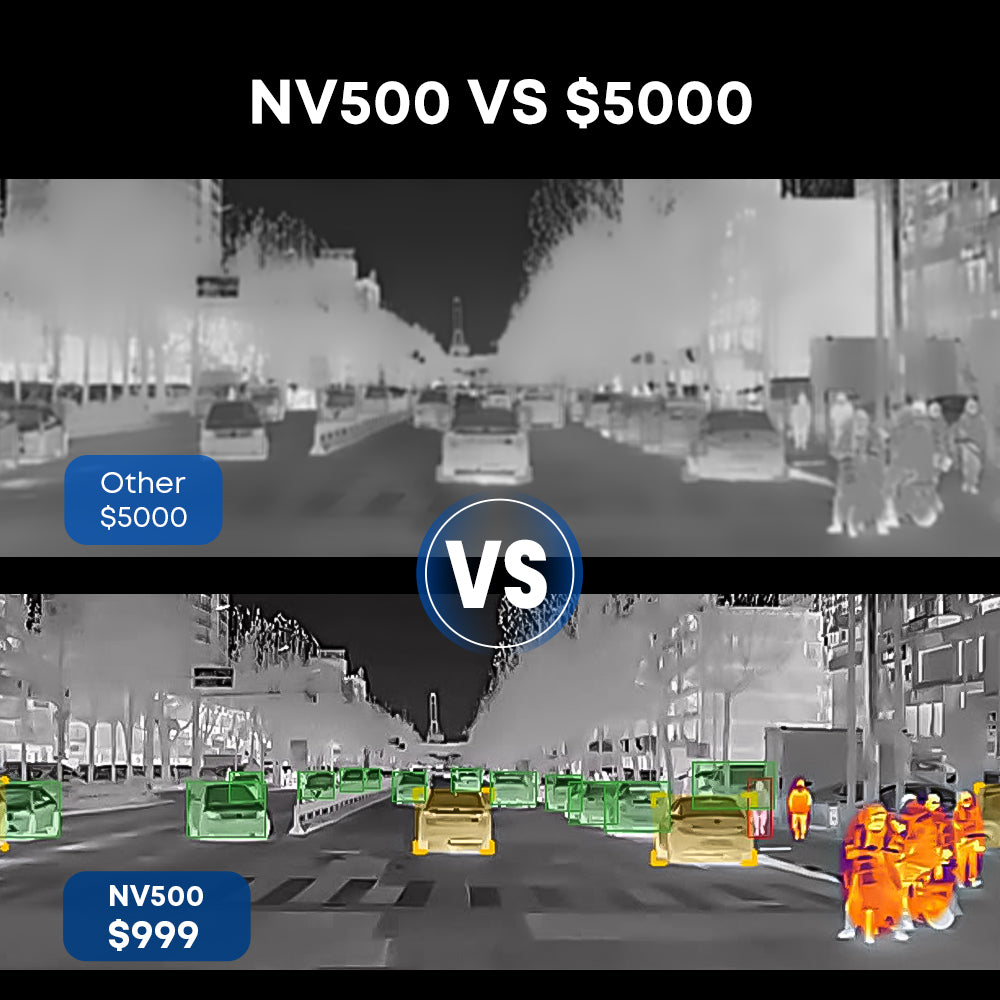

• Total darkness: Full thermal visibility
• High beam glare: Unaffected by bright lights
• Fog/haze: Thermal penetration through poor visibility
• Rain/snow: Reliable detection in precipitation

Installation & Connectivity

• 5-minute quick installation
• WiFi hotspot streaming
• TF card storage (up to 64GB)
• DC 12V and 24V power support
• Power consumption: ≤10W standard, ≤12W with defrost

Vehicle Compatibility

Car, Pickup, Truck, Bus, School Bus, RV. Especially designed for Tesla and premium vehicle integration.

Dimensions

• Host: W: 95mm, L: 111mm, H: 51mm

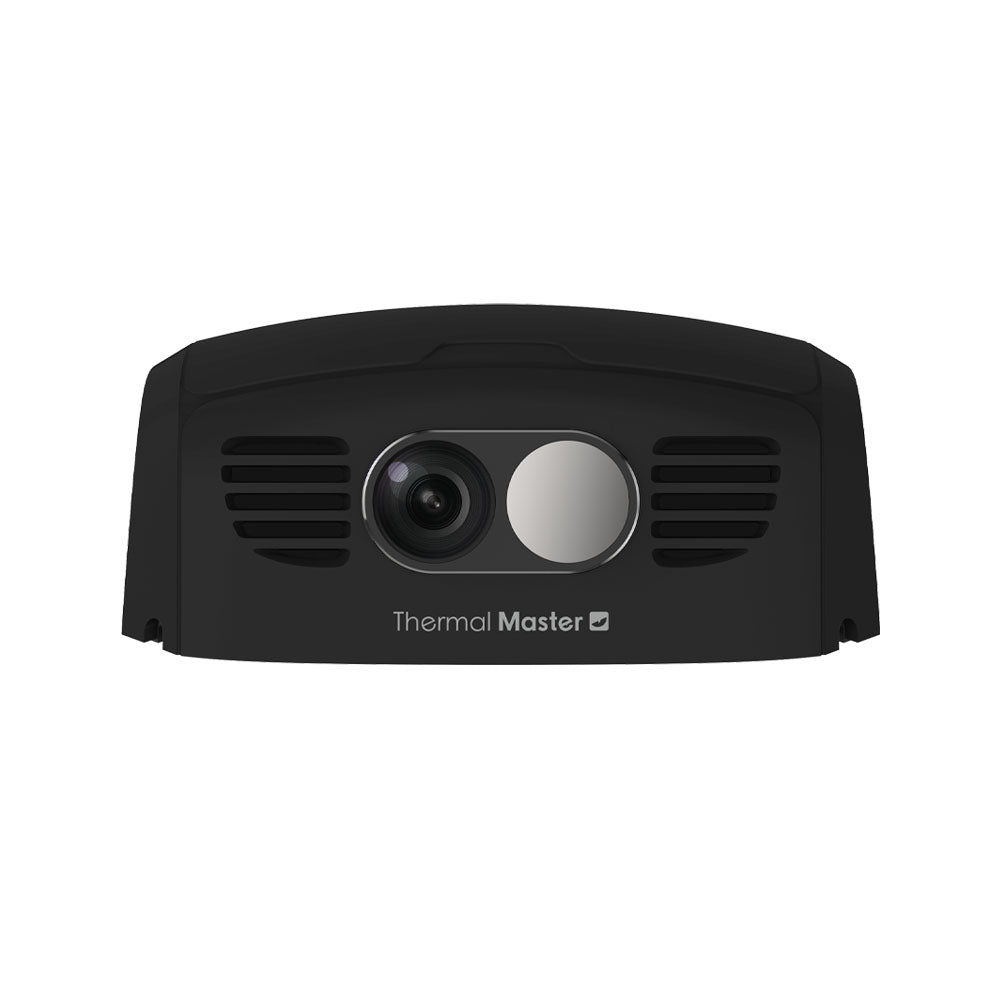

• Camera: W: 39mm, L: 33mm, H: 34mm
• Weight: <500g

Warranty & Support

• 2-year warranty
• 30-day money back guarantee
• Lifetime technical support
• Free global shipping
